TOR-3115

$ 119 USD

A power-dense motor solution built for rapid acceleration and sustained high-speed performance across freestyle, racing, and other high-agility applications.

  • Sustained Life Span: High-quality mechanical interfaces, such as bearings, are engineered across the design to ensure long-duration performance.
  • Stable Power Output: High-cohesivity magnets maintain consistent top-line performance even at continuous power draw.
  • Thermal Resilience: High-temperature magnet wire coating ensures coils do not short in hot conditions.
:
:
-
01
+

Max: 24

Buy now

Need a large batch order?

Need a large batch order?

Talk To Sales
Talk To Sales

Talk with Talos about integration needs, timeline, and volume requirements.

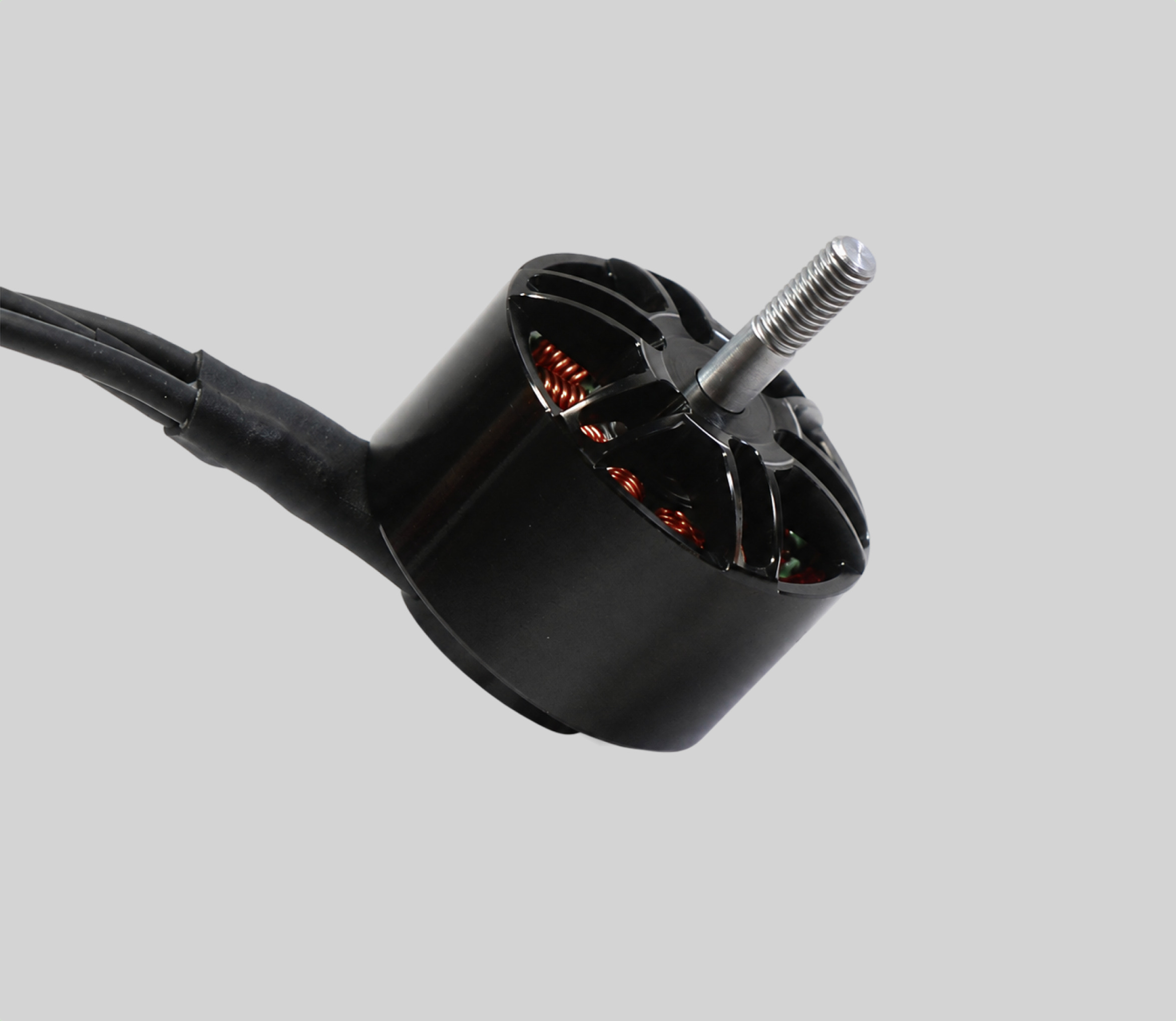

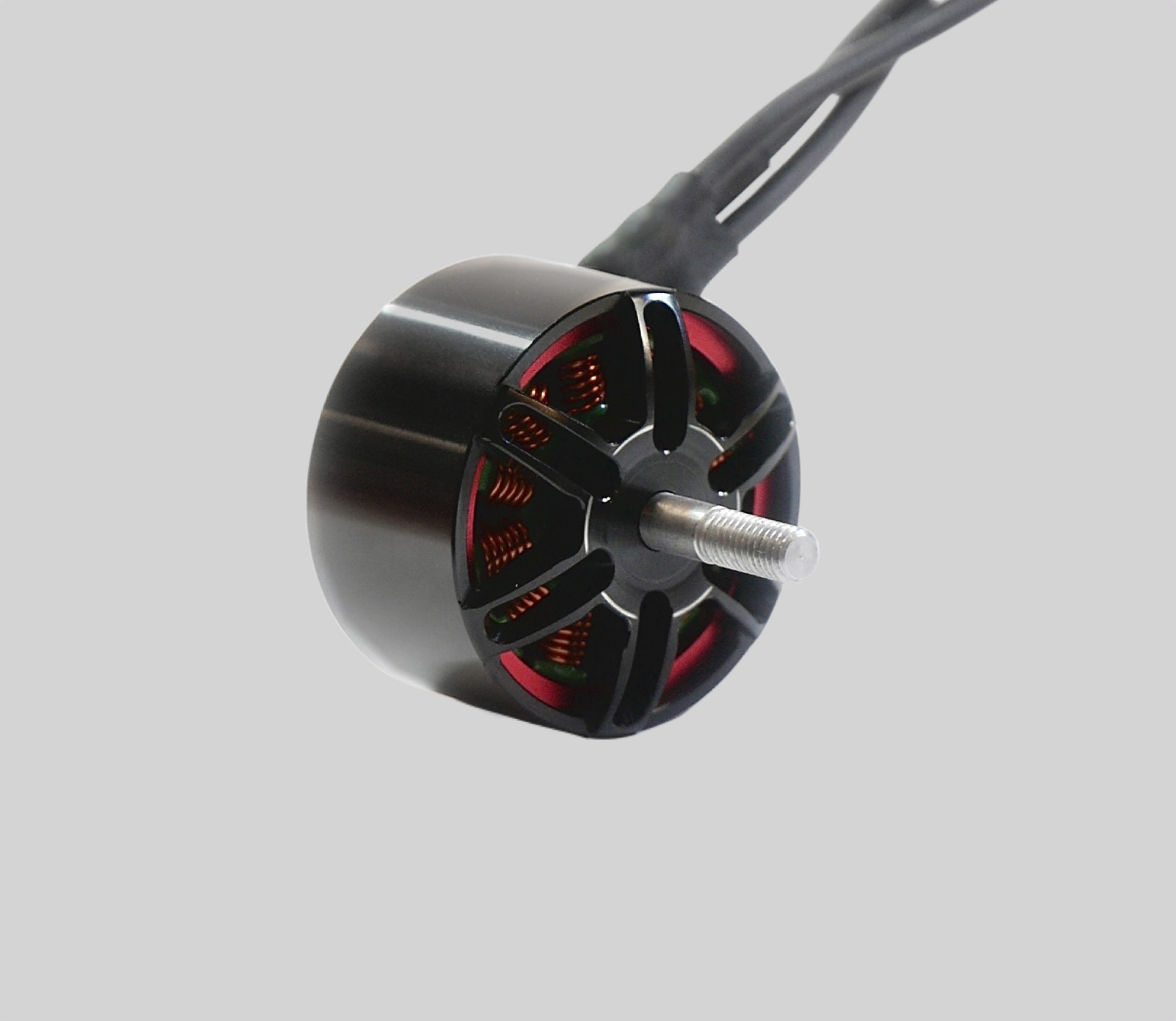

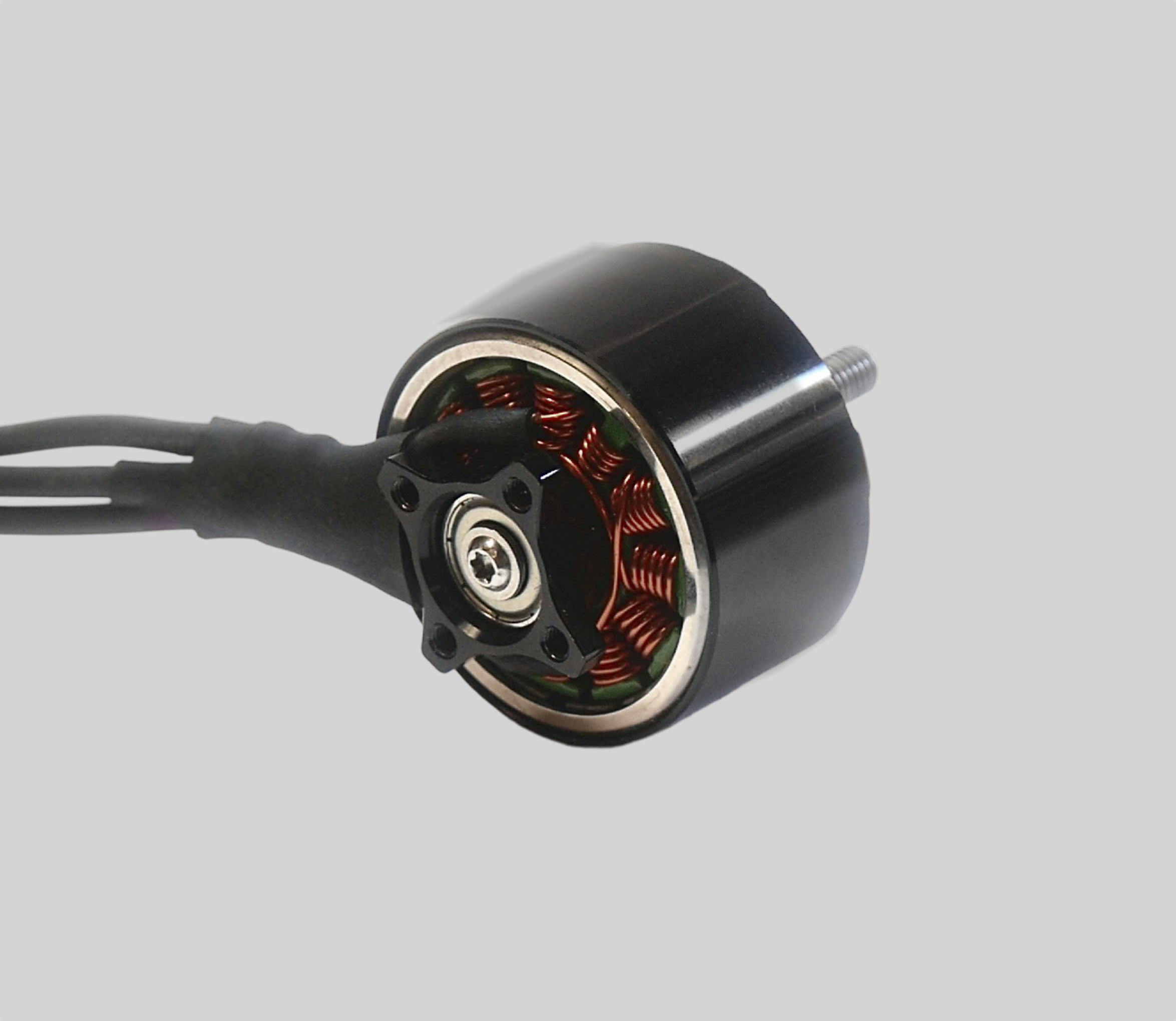

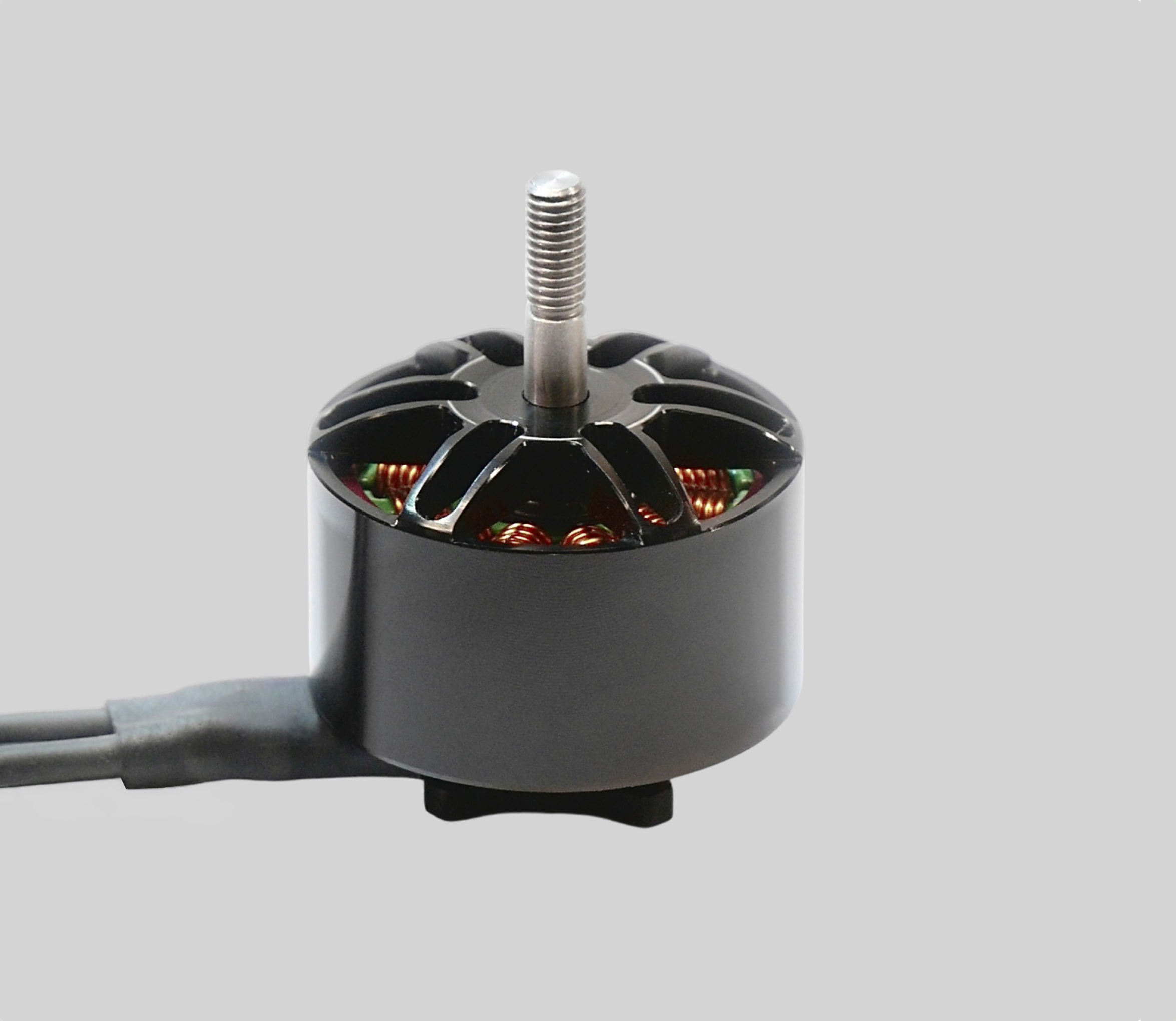

About TOR-3115

‍

Providing more power than comparable off-the-shelf motors in the same footprint, TOR-3115 delivers an immediate response and unlocks a higher top-end speed for cinematography and freestyle pilots.

‍

Highlights:

‍

  • Sustained Life Span: High-quality mechanical interfaces, such as bearings, are engineered across the design to ensure long-duration performance.
  • Stable Power Output: High-cohesivity magnets maintain consistent top-line performance even at continuous power draw.
  • Thermal Resilience: High-temperature magnet wire coating ensures coils do not short in hot conditions.
Download Specs Manual
Download Specifications
Values at Nominal Voltage
Value
Unit
Nominal Voltage
24
V
No Load Speed
23,031
RPM
Nominal Speed
10,379
RPM
Nominal Torque (max. continuous)
0.54
Nm
Nominal Current (max. continuous)
40.5
A
Max. Efficiency*
82.4
%
Characteristics
Value
Unit
Terminal Resistance line-to-line
0.0303
Ω
Torque Constant
0.0133
Nm/A
Speed Constant
926
RPM/V
Thermal Data
Value
Unit
Ambient Temperature
20…+100
°C
Max. continuous winding temperature
+160
°C
Absolute max. winding temperature
+180
°C
Other Specifications
Value
Unit
Number of pole pairs
7
Number of phases
3
Installation Specifications
Value
Unit
Weight of motor
145
g
Recommended propeller size
9–10
in
Lead wire length
280
mm
