TOR-4112

$ 150 USD

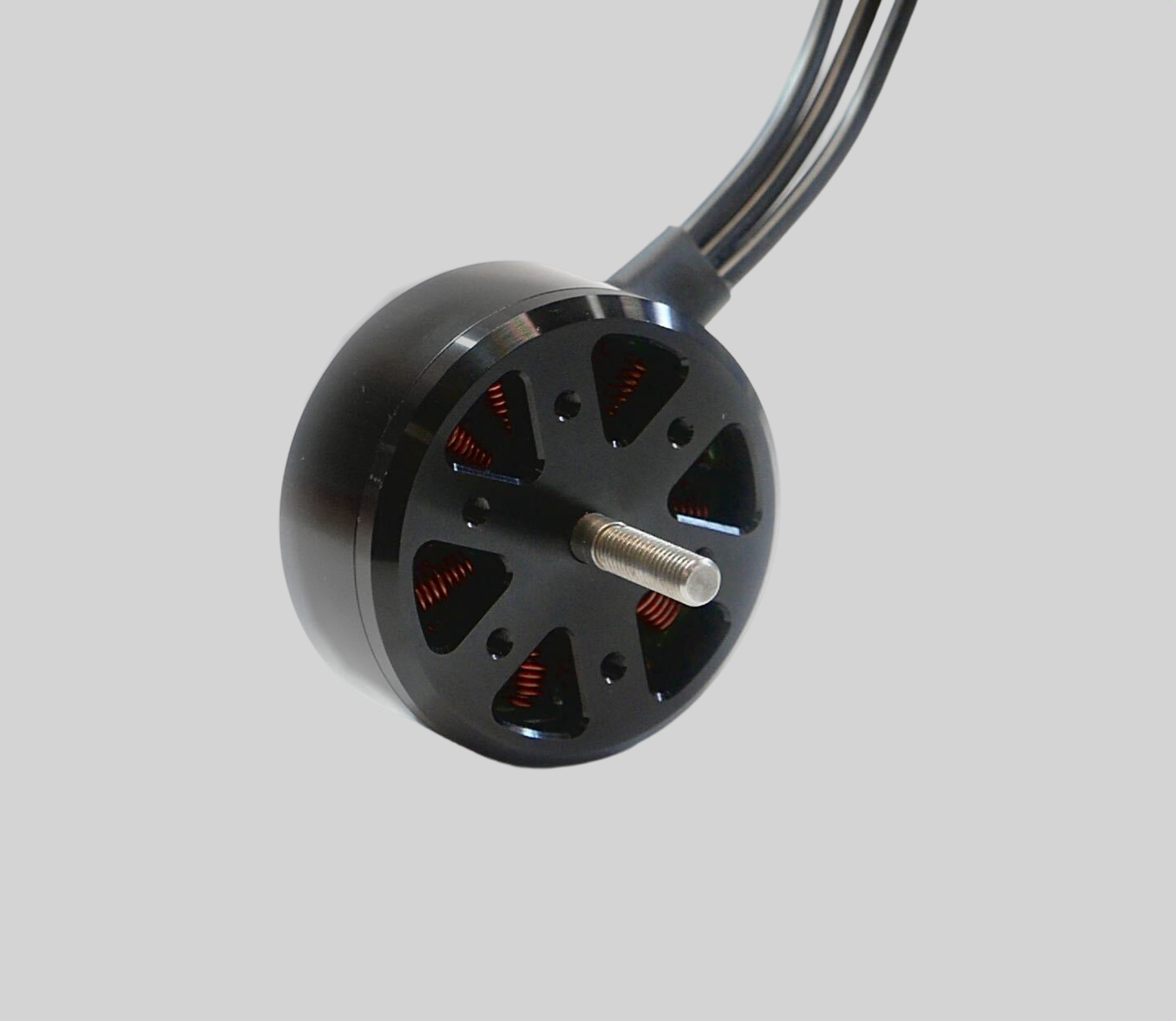

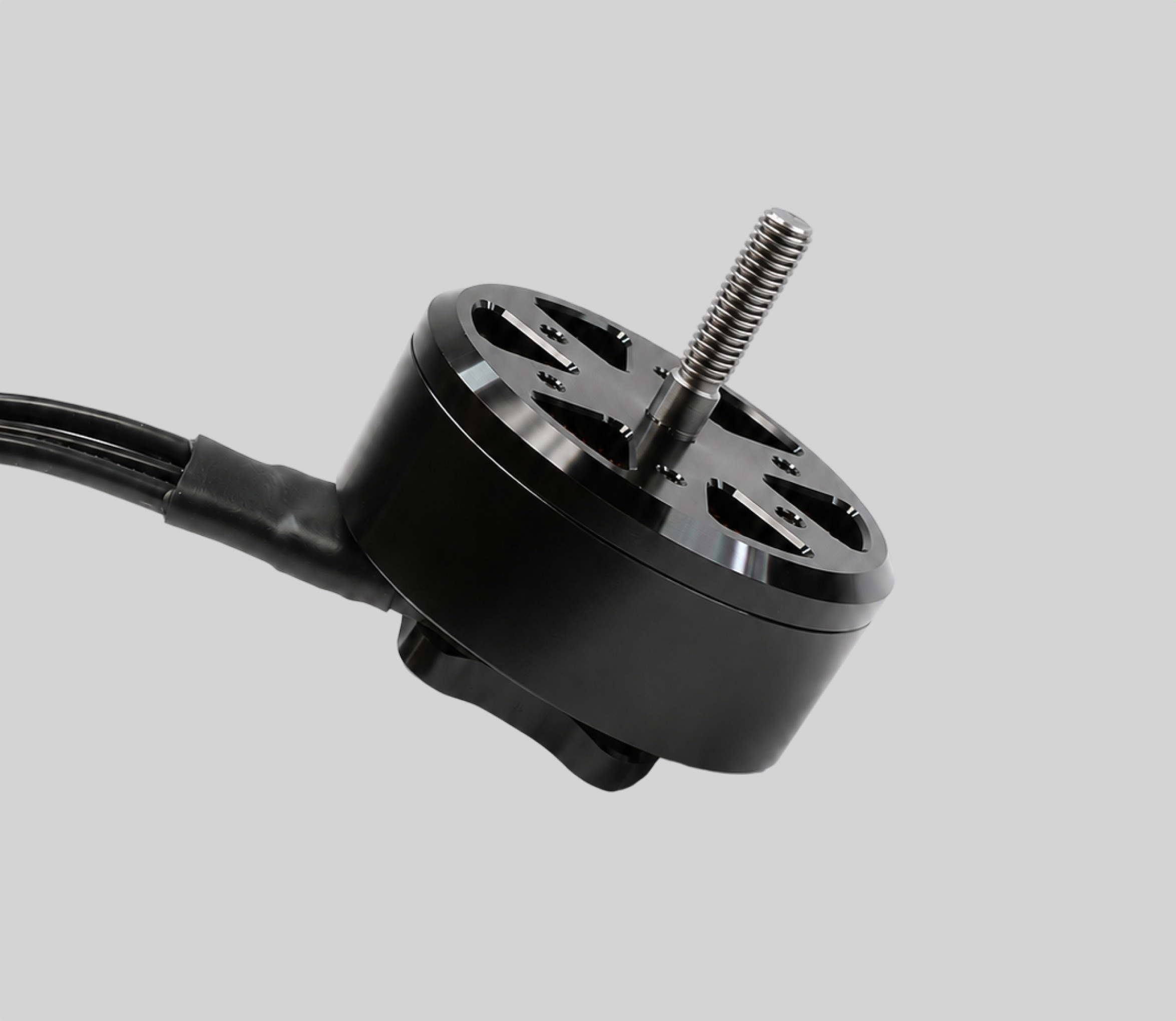

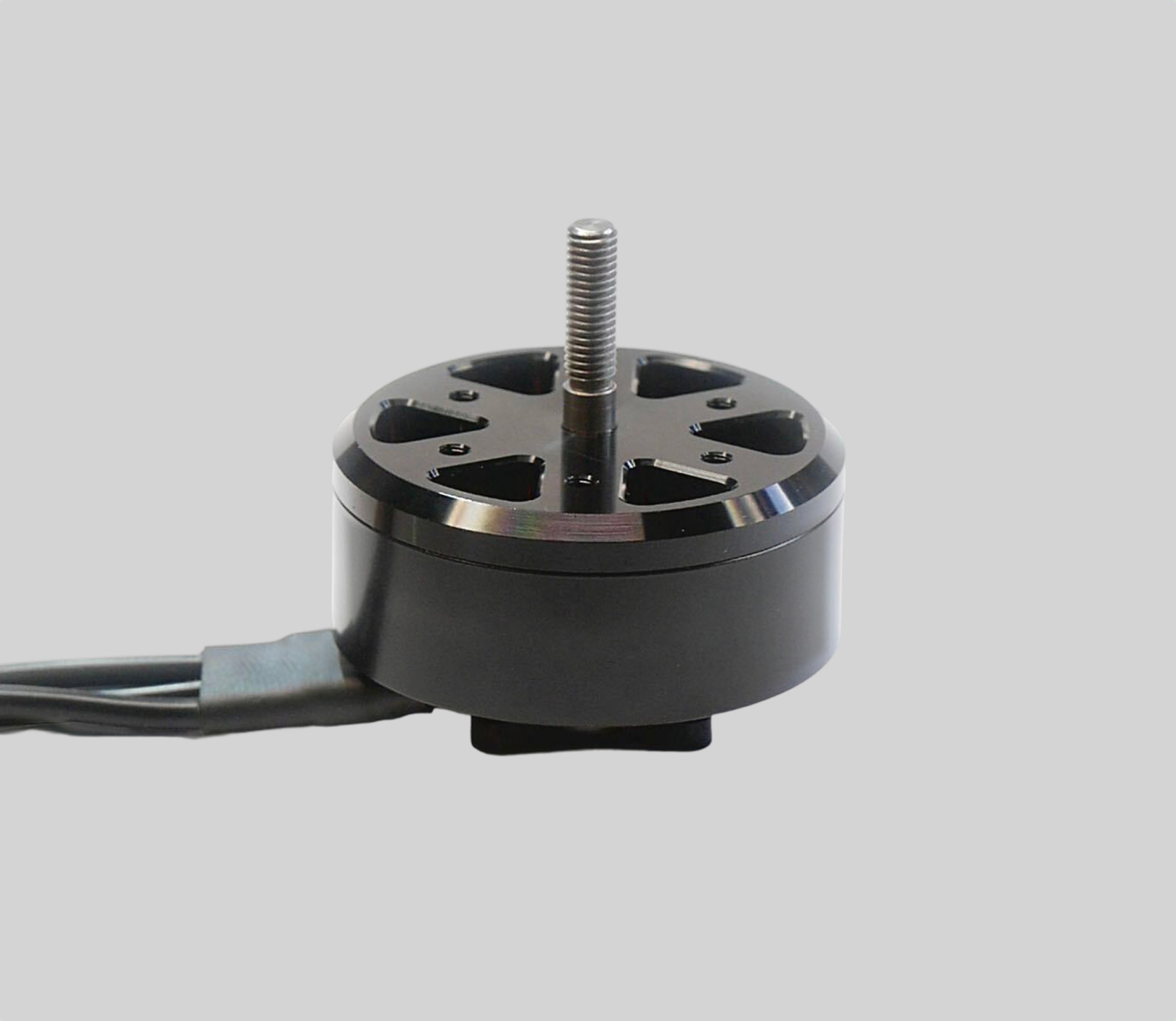

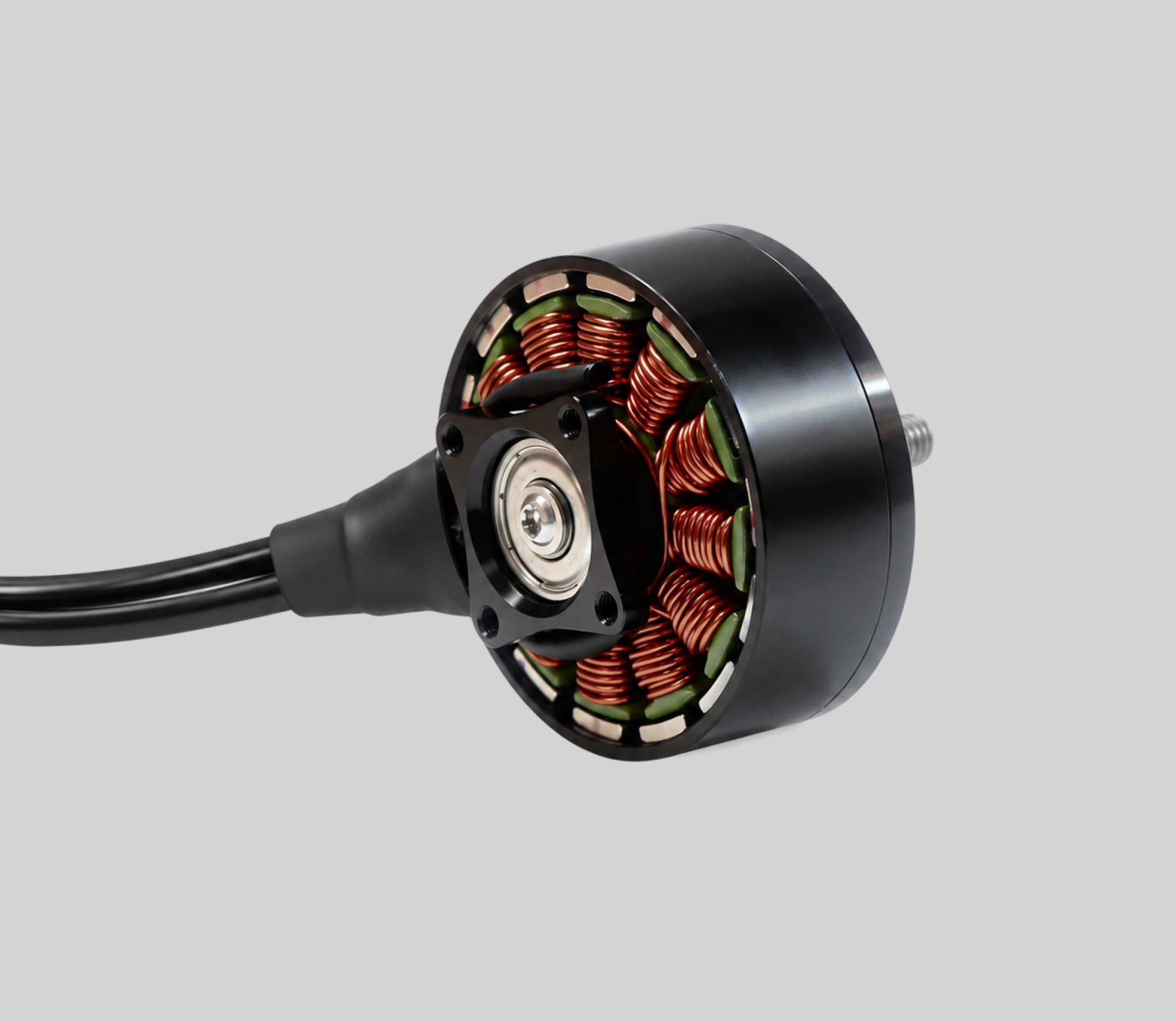

A high-efficiency motor, compatible with folding propellers, optimized for maximum payload and multi-sensor applications.

  • Sustained Life Span: High-quality mechanical interfaces, such as bearings, are engineered across the design to ensure long-duration performance.
  • Stable Power Output: High-cohesivity magnets maintain consistent top-line performance even at continuous power draw.
  • Thermal Resilience: High-temperature magnet wire coating ensures coils do not short in hot conditions.
  • Folding Propellers: The shaft and hub interface are designed to accept folding-prop hardware enabling compact transport and rapid field deployment.
:
:
-
01
+

Max: 24

Buy now

Need a large batch order?

Need a large batch order?

Talk To Sales
Talk To Sales

Talk with Talos about integration needs, timeline, and volume requirements.

About TOR-4112

‍

Optimized for power-to-weight efficiency, TOR-4112 maximizes available payload for complex integrations. This motor supports commercial platforms in surveying, mapping, and infrastructure inspection. Compatible with folding propellers, it provides a universal, highly modular solution.

‍

Highlights:

  • Sustained Life Span: High-quality mechanical interfaces, such as bearings, are engineered across the design to ensure long-duration performance.
  • Stable Power Output: High-cohesivity magnets maintain consistent top-line performance even at continuous power draw.
  • Thermal Resilience: High-temperature magnet wire coating ensures coils do not short in hot conditions.
  • Folding Propellers: The shaft and hub interface are designed to accept folding-prop hardware enabling compact transport and rapid field deployment.
Download Specs Manual
Download Specifications
Values at Nominal Voltage
Value
Unit
Nominal Voltage
24
V
No Load Speed
10,800
RPM
Nominal Speed
6,500
RPM
Nominal Torque (max. continuous)
0.85
Nm
Nominal Current (max. continuous)
35
A
Max. Efficiency*
82
%
Characteristics
Value
Unit
Terminal Resistance line-to-line
0.061
Ω
Torque Constant
0.0242
Nm/A
Speed Constant
460
RPM/V
Thermal Data
Value
Unit
Ambient Temperature
20…+100
°C
Max. continuous winding temperature
+160
°C
Absolute max. winding temperature
+180
°C
Other Specifications
Value
Unit
Number of pole pairs
7
Number of phases
3
Weight of motor
183
g
